100W-126W UVA LED SMD LED COB 1616 3535 8025 365nm 405nm 395nm 13-56v 3D printer UV curing
| UV-A | POWER | Dominant Wavelength | Optical Power | IF | VF | WHOLE SIZE | Lighting Area | VIEW ANGLE | LENS |

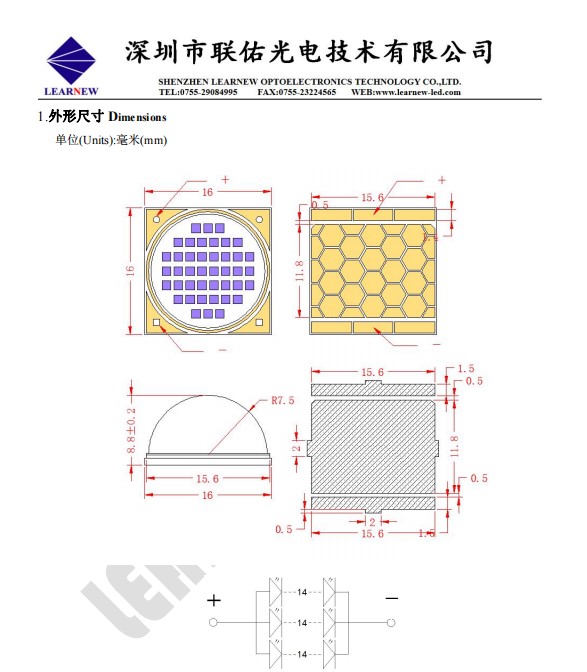

| LN-CVS16UV-P42 | 100W | 365nm | 33500-38000mW | 2100mA
(Max=3A) | 48-54V | 16*16MM | R15MM | 60-90° | QUARTZ GLASS LENS |
| 385nm | 40000-48000mW |
| 395nm | 42000-50000mW |
| LN-CVS35UV-P45 | 110W | 365nm | 35000-41000mW | 2100mA
(Max=3A) | 51-56V | 35*35MM | 20*35MM | 120° | QUARTZ GLASS LENS |
| 385nm | 44000-52000mW |
| 395nm | 45000-54000mW |

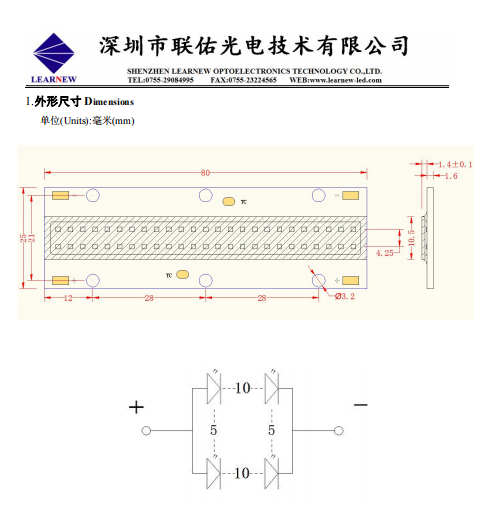

| LN-CVB80UV-P50 | 125W | 365nm | 38000-44000mW | 3500mA
(Max=5A) | 34-38V | 80*25MM | 80*10MM | 120° | QUARTZ GLASS LENS |
| 385nm | 48000-56000mW |
| 395nm | 50000-58000mW |
LN-CVS17UVH- P48
(Hybrid version) | 126W | 365nm 25%
395nm 25%
420nm 25%
365nm 25% | 48000-54000mW | 8400mA
(Max=12A) | 13-16V | 20*17MM | 10*17MM | 120° | QUARTZ GLASS LENS |
| LN-CVS17UV- P48 | 365nm | 38000-42000mW |
| 385nm | 48000-54000mW |
| 395nm | 50000-56000mW |
UVA LED COB has a luminous angle of 60°-120°. Multiple LED cob chip can be spliced into a UV module. The products are used in various commercial and industrial curing, printers, ink printers, and printing machines.
Learnew Opto supports custom hybrid or other UVA products
About Learnew opto and brand story(Artificial supplemental horticultural lights)
Dedicated to efficient agriculture with LED technology
Engaged in LED products manufacture, R&D and market nearly decade years, Support OEM & ODM
Learnew own 8 automatic production lines, 2 industry level laboratories to support both LED components(SMD LED & LED COB) and LED grow light
Professional foreign trade sales team, the average member of more than 3 years of relevant work experience
Market cover North America, European, South America and Southeast Asian
Famous customers include TOSHIBA LIGHTIN, FLEXTRONICS...
Learnew project team with more than 3 years experience of big greenhouse bu
