Brand Name : LEARNEW
Model Number : LN-CVS35UVH-P120 (Hybrid version)
Certification : CE RoHS SGS
Place of Origin : CHINA
MOQ : 1000
Price : Negotiable price
Payment Terms : T/T, L/C, Western Union
Supply Ability : 2,400,000PCS per month
Delivery Time : 7-12 working days
Packaging Details : Anti-static Blister packing
Optical Power : 122000-145000mW
IF : 8400mA (Max=12A)
VF : 34-38V
Circuit : 10S12P
WHOLE SIZE : 35*35MM
VIEW ANGLE : 120°

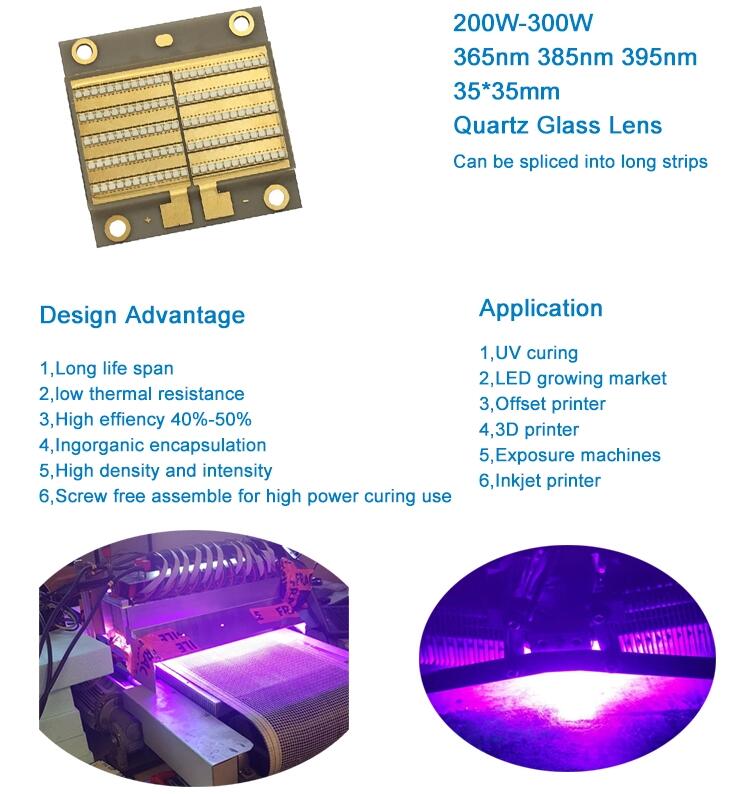

High density 300W 385nm 395nm uv led for UV LED Curing machine System
| models | LN-CVS35UV-P120 |
|---|---|
| Dominant Wavelength | 395nm 50% 385nm 50% |
| POWER | 300W |
| Circuit | 10S12P |
| Lighting Area | 22*35MM |
| CHIPS | VERTICAL(LG or SEOUL SEMI) |
| LENS | QUARTZ GLASS LENS |
| SUBSTRATE | ALN Coppering |
| Appilcation | 1,UV curing 2,LED growing market 3,Offset printer 4,3D printer 5,Exposure machines 6,Inkjet printer 7,High intensity curing Market like 3KW,7kW,15KW... |
Design Advantage:
Our services:
1. we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.Quality is guaranteed by professional team of R&D and QC.
|
35*35MM UV LED Chips Images |
